UVC 3535 SMD LED 10mW 15mW 270nm 275nm 280nm 3939 UV LED Chip Ultra Violet light deep uv led lamp

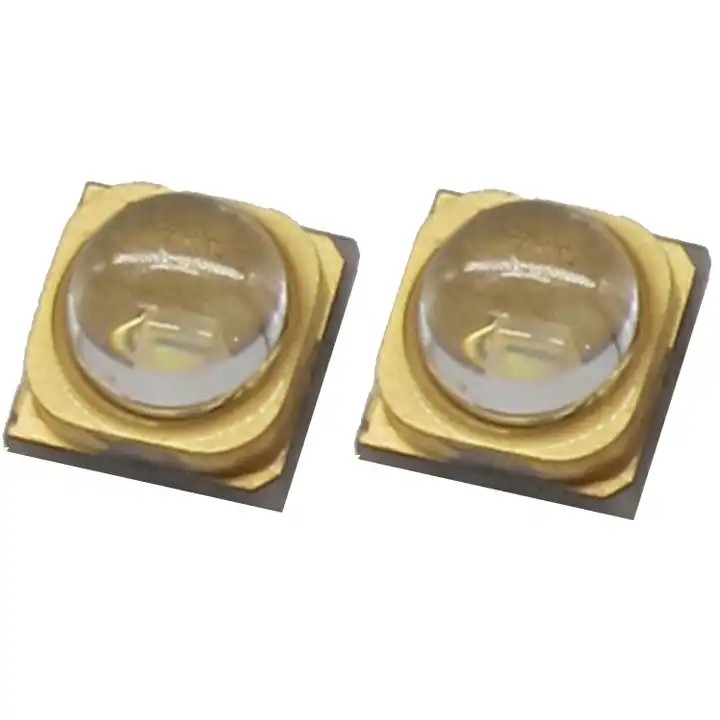

The UVC 3535 SMD LED is a surface-mounted LED chip that emits ultraviolet (UV) light in the deep UV range. It is available in two power options, with power outputs of 10mW and 15mW respectively. The LED chip operates at wavelengths of 270nm, 275nm, and 280nm, which are within the UV-C spectrum. This LED chip, known as the 3939 UV LED chip, is specifically designed for applications that require deep UV light. It is commonly used in the manufacturing of deep UV LED lamps and other devices that utilize ultraviolet light in this wavelength range.
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 270 | --- | 285 | nm | IF=100mA |
| Power dissipation | Pt | UV | 10 | --- | 15 | mW | IF=100mA |
| Forward voltage | VF | UV | 5 | --- | 8 | V | IF=100mA |
| Viewing angle | | | --- | 120 | --- | deg | IF=100mA |
| Reverse current | IR | | --- | ---- | 5 | uA | IF=100mA |
| Operation Temperature | －40~+85℃ | Size | 3.9*3.9*3.5mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Applications:
- Printing and Glue Curing
- Plant Grouth Light Source
- Mosquito and Insect Trapping
- Fluorescent Lighting
- Jewelry and Jade Detection
- MedicalDetection and Nail Enhancement
Materials:
Company information:
| Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2-3 weeks .
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
